Encoders e interfaces

Para manter alta precisão em um sistema de controle do movimento é sempre necessario usar tecnologias compativeis em desempenho, a CHOICE oferece uma ampla gama de Encoders Incrementais e absolutos para as mais exigentes aplicações na industria, comunicação em Profibus, CanOpen e ethernet, linha especial para area de elevadores

choice

Rotaplus

Encoders opticos incrementais

I28
Miniature incremental encoder, Ø28mm.
Robust metal housing.
Resolution up to 1024 pulses/rev.
For light industrial applications.
Housing diameter 28 mm
Shaft diameter 4, 5 mm
Cable output Yes
Connector output -
Resolution 1024 PPR max.
Counting frequency 100 kHz max.
Output circuits Push-Pull, Line Driver,
Universal Circuit
Operating temperature -20°C +70°C (-4°F +158°F)
Protection IP54
I40
Convenient and compact encoder.
M20 screw fixing.
Axial or radial cable output.
Housing diameter 40 mm
Shaft diameter 4, 6, 6.35, 8 mm
Cable output Yes
Connector output -
Resolution 3600 PPR max.
Counting frequency 100 kHz max.
Output circuits NPN, Push-Pull, Line Driver,
Universal Circuit
Operating temperature -20°C +70°C (-4°F +158°F)
Protection IP54
I41
Standard flange with 3 screws fixing.
Preferential encoder available on Stock.
Housing diameter 40 mm
Shaft diameter 4, 6, 6.35, 8 mm
Cable output Yes
Connector output -
Resolution 3600 PPR max.
Counting frequency 100 kHz max.
Output circuits NPN, Push-Pull, Line Driver,
Universal Circuit
Operating temperature -20°C +70°C (-4°F +158°F)
Protection IP54

  I58
Standard industrial encoder.
Ø58mm servo flange.
AB0 or Sine/Cosine signals.
Up to 10000 pulses/rev.
Variety of connectors and cable output.
Preferential encoder on Stock.
Housing diameter 58 mm
Shaft diameter 6, 8, 9.52, 10, 12 mm
Cable output Yes
Connector output Yes
Resolution 10000 PPR max.
Counting frequency 300 kHz max.
Output circuits NPN, Push-Pull, Line Driver,
Universal Circuit
Operating temperature -40°C +100°C (-40°F +212°F) max.
Protection IP65
  I58S
Clamp flange.
Preferential encoder on Stock.
Housing diameter 58 mm
Shaft diameter 6, 8, 9.52, 10, 12 mm
Cable output Yes
Connector output Yes
Resolution 10000 PPR max.
Counting frequency 300 kHz max.
Output circuits NPN, Push-Pull, Line Driver,
Universal Circuit
Operating temperature -40°C +100°C (-40°F +212°F) max.
Protection IP65
  IT65
Square flange, US size.Preferential encoder on Stock.
Housing diameter 65 mm
Shaft diameter 6, 8, 9.52, 10, 12 mm
Cable output Yes
Connector output Yes
Resolution 10000 PPR max.
Counting frequency 300 kHz max.
Output circuits NPN, Push-Pull, Line Driver,
Universal Circuit
Operating temperature -40°C +100°C (-40°F +212°F) max.
Protection IP66 max.
  XC77
Very robust incremental encoder with ATEX certification.
Blind hollow shaft design.
Axial or radial cable output.
IP66 protection.
For chemical plants, mining industry, ATEX motors, painting machines.
Housing diameter 77 mm
Shaft diameter 14 mm
Cable output Yes
Connector output -
Resolution 10000 PPR max.
Counting frequency 300 kHz max.
Output circuits NPN, Push-Pull, Line Driver,
Universal Circuit
Operating temperature -20°C +40°C (-4°F +104°F) max.
Protection IP66 max.

  I105
High resolution encoder.
18000 pulses/rev.
For rotary & index tables.
IP65 protection.
Housing diameter 105 mm
Shaft diameter 10 mm
Cable output Yes
Connector output Yes
Resolution 18000 PPR
Counting frequency 100 kHz
Output circuits Push-Pull, Line Driver, Universal Circuit
Operating temperature -20°C +70°C (-4°F +158°F)
Protection IP65 max.
  ICS
Robust aluminium housing.
Spring loaded shaft.
For linear measurements with pinion + racks or metric wheels.
Housing diameter 172x80x53 mm
Shaft diameter 12 mm
Cable output -
Connector output Yes
Resolution 1068 PPR max.
Counting frequency 60 kHz
Output circuits NPN, Push-Pull, Line Driver,
Universal Circuit
Operating temperature -20°C +70°C (-4°F +158°F)
Protection IP65
  CK46
Incremental encoder with blind hollow shaft.
Compact design, Ø46mm.
For textile machinery.
Axial and radial cable output.
Housing diameter 46 mm
Shaft diameter 6, 6.35 mm
Cable output Yes
Connector output -
Resolution 3600 PPR max.
Counting frequency 60 kHz
Output circuits NPN, Push-Pull, Line Driver,
Universal Circuit
Operating temperature -40°C +100°C max.
Protection IP65 max.

  C50
Small size incremental encoder.
Operating temperature -40°C +100°C.
DC and AC motor feedback.Preferential encoder on Stock.
Housing diameter 50 mm
Shaft diameter 6, 6.35, 8, 9.52, 10 mm
Cable output Yes
Connector output -
Resolution 1024 PPR max.
Counting frequency 100 kHz
Output circuits Push-Pull, Line Driver,
Universal Circuit
Operating temperature -40°C +100°C (-40°F +212°F)
Protection IP65 max.



  C51
Small size incremental encoder with high resolution.
DC and AC motor feedback
Housing diameter 50 mm
Shaft diameter 6, 6.35, 8, 9.52, 10 mm
Cable output Yes
Connector output -
Resolution 2500 PPR max.
Counting frequency 100 kHz max.
Output circuits Push-Pull, Line Driver, PP/LD
Operating temperature -20°C +85°C
Protection IP65 max.



  CB50
UVW signals.
For BLDC motor feedback.
Through hollow shaft encoder.
Housing diameter 58 mm
Shaft diameter 6, 6.35, 8, 9.52, 10 mm
Cable output Yes
Connector output -
Resolution 2500 PPR max. + 8 poles max.
Counting frequency 200 kHz
Output circuits Push-Pull, Line Driver + UVW signals
Operating temperature -20°C +100°C (-4°F +212°F)
Protection IP20


  CB59
Sine/cosine + Resolver signal (Z-track).
For gearless & BLDC motor feedback.
Compact design.
Shaft fixing from rear side.
Housing diameter 58 mm
Shaft diameter 12.7, 15 mm
Cable output Yes
Connector output -
Resolution 2048 PPR + 1 sin/cos
Counting frequency 200 kHz
Output circuits 1Vpp + Z track
Operating temperature -20°C +100°C (-4°F +212°F)
Protection IP40
  C59 • C60 • C58
Through hollow shaft up to Ø15mm.
Resolution up to 1024 pulses/rev.
Radial cable output.
Different fixing possibilities:
· C58: standard version with movable antirotation pin (M3 screw);
· C59: flexible fixing plate "xx59 style";· C60: compact fixing plate "xx60 style"
Housing diameter 58 mm
Shaft diameter 14, 15 mm
Cable output Yes
Connector output -
Resolution 5000 PPR max.
Counting frequency 60 kHz
Output circuits Push-Pull, Line Driver, Universal Circuit
Operating temperature -40°C +100°C (-40°F +212°F) max.
Protection IP65 max.
  C58A • C58R
Compact design, Ø58mm.
Through hollow shaft encoder.
Resolution up to 2500 pulses/rev.
Feedback encoder for DC / AC motors.
· C58A: fixing collar on front side
· C58R: fixing collar on back side
Housing diameter 58 mm
Shaft diameter 14, 15 mm
Cable output Yes
Connector output -
Resolution 5000 PPR max.
Counting frequency 300 kHz max.
Output circuits Push-Pull, Line Driver, Universal Circuit
Operating temperature -40°C +100°C (-40°F +212°F) max.
Protection IP65 max.
  CK61
Integrated flexible coupling.
Blind hollow shaft up to Ø12mm.
Shaft fixing from back side.
Resolution up to 3600 pulses/rev.
Housing diameter 58 mm
Shaft diameter 10, 12 mm
Cable output -
Connector output Yes
Resolution 3600 PPR max.
Counting frequency 300 kHz max.
Output circuits Push-Pull, Line Driver, Universal Circuit
Operating temperature -40°C +100°C (-40°F +212°F) max.
Protection IP65 max.
  C81
For elevator motors.
Very robust hollow shaft encoder.
Internal structure in steel.
Resolution up to 4096 pulses/rev.
Housing diameter 80 mm
Shaft diameter 44 mm max.
Cable output Yes
Connector output -
Resolution 4096 PPR max.
Counting frequency 200 kHz max.
Output circuits Push-Pull, Line Driver,
Universal Circuit, 1Vpp
Operating temperature -40°C +100°C (-40°F +212°F) max.
Protection IP65 max.
  C80
Feedback encoder for big sized motors.
Very flat design.
Through hollow shaft up to Ø30mm.
Robust die cast housing.
IP65 protection.
Housing diameter 80 mm
Shaft diameter 30 mm
Cable output Yes
Connector output -
Resolution 2500 PPR max.
Counting frequency 100 kHz
Output circuits Push-Pull, Line Driver, Universal Circuit
Operating temperature -40°C +100°C (-40°F +212°F) max.
Protection IP65 max.



Rotacod

 Encoder opticos absolutos



Hx58 FB • Hx58S FB • HxC58 FB
High resolution Fieldbus   encoders
One encoder fits all Fieldbusses
Cable or connector output
Housing diameter 58 mm
Shaft diameter 6, 8, 9.52, 10, 12, 14, 15 mm
Cable output yes
Connector output yes
Resolution 18 bit (HS version)
16+14 bit (HM version)
Output circuits Profibus-DP, DeviceNet
CANopen, CANlift
Operating temperature -25°C +85°C (-13°F +185°F)
Protection IP65 (with connection cap assembled)









Ax58x PB
Absolute encoder with Profibus-DP interface.
Robust industrial encoder.
Solid shaft Ø6, 8, 10, 12 mm.
Hollow shaft versions up to Ø15mm.
Connection cap with cable or connectors.
Housing diameter 58 mm
Shaft diameter 6, 8, 9.52, 10, 12, 14, 15 mm
Cable output -
Connector output Connection cap
Resolution 16 Bit, 16 x 14 Bit max.
Output circuits Profibus DP
Operating temperature -25°C +85°C (-13°F +185°F)
Protection IP65



Ax58x CB
Absolute encoder with CANopen or CANlift interface.
CANEasy version with direct cable output.
Solid shaft Ø6, 8, 10, 12 mm.
Hollow shaft versions up to Ø15mm.
Connection cap with cable output.
Housing diameter 58 mm
Shaft diameter 6, 8, 9.52, 10, 12, 14, 15 mm
Cable output -
Connector output Connection cap
Resolution 16 Bit, 16 x 14 Bit max.
Output circuits CANopen • CANlift
Operating temperature -25°C +85°C (-13°F +185°F)
Protection IP65

Ax58x EasyCAN
Absolute encoder with CANopen and CANlift outputs.
Output with cable or M12 connector available.
High resolution.
Compact versions.
Housing diameter 58 mm
Shaft diameter 6, 8, 9.52, 10, 12, 14, 15 mm
Cable output si
Connector output si
Resolution 18 bit (AS version)
16x14 bit (AM version)
Output circuits CANopen, CANlift
Operating temperature -25°C +85°C
Protection IP65


HS58 • HS58S • HSC58
BiSS or SSI + Sine/Cosine 1Vpp signals.
65536 Counts/rev. + 2048 PPR sin/cos.
Shaft and hollow shaft version.
Different fixing possibilities.
Feedback encoder for motors.
Housing diameter 58 mm
Shaft diameter 6, 8, 9.52, 10, 12, 14, 15 mm
Cable output Yes
Connector output Yes
Resolution 16 Bit + 2048 sin/cos
Output circuits BiSS, SSI + 1Vpp
Operating temperature -25°C +85°C (-13°F +185°F)
Protection IP65


HM58 • HM58S • HMC58
Multi turn version.
BiSS or SSI + Sine/Cosine 1Vpp signals.
Resolution up to 16 + 14 bit.
Shaft and hollow shaft version.
Different fixing possibilities.
Feedback encoder for motors.
Housing diameter 58 mm
Shaft diameter 6, 8, 9.52, 10, 12, 14, 15 mm
Cable output Yes
Connector output Yes
Resolution 16 x 14 Bit max.
Output circuits BiSS, SSI + 1Vpp
Operating temperature -40°C +100°C max.
Protection IP65



AS5
Compact size absolute single-turn encoder, Ø51mm.
Bit parallel and SSI output signals.
Axial or radial cable.
Suitable for heavy industrial use.
Housing diameter 51 mm
Shaft diameter 6, 8, 10, 12 mm
Cable output Yes
Connector output -
Resolution 12 Bit
Output circuits NPN, Push-Pull
Operating temperature -20°C +70°C (-4°F +158°F)
Protection IP65
AS58 • AS58S • ASC58
Standard absolute single-turn encoder.
Resolution up to 16 bit (65535 counts/rev.).
Robust housing. Cable and connector output.
· AS58: servo flange
· AS58S: clamp style flange
Blind hollow shaft up to Ø15mm.
Different fixing possibilities:
· ASC58: standard version with movable antirot. pin (M3 screw)
· ASC59: flexible fixing plate "xx59 style"
· ASC60: compact fixing plate "xx60 style"
Housing diameter 58 mm
Shaft diameter 6, 8, 9.52, 10, 12, 14, 15 mm
Cable output Yes
Connector output Yes
Resolution 16 Bit max.
Output circuits NPN, Push-Pull, SSI
Operating temperature -40°C +100°C max.
Protection IP65



AST6
US style single-turn encoder.
Robust die cast housing for heavy duty applications.
Protection up to IP66.
Housing diameter 65 mm
Shaft diameter 6, 8, 9.52, 10, 12 mm
Cable output Yes
Connector output Yes
Resolution 16 Bit max.
Output circuits NPN, Push-Pull, SSI
Operating temperature -40°C +100°C (-40°F +212°F) max.
Protection IP66 max.



XAC77
Very robust absolute encoder with ATEX certification.
Single & multi-turn version.
Blind hollow shaft design.
Axial or radial cable output.
IP66 protection.
For chemical plants, mining industry, ATEX motors, painting machines.
Housing diameter 77 mm
Shaft diameter 10, 14, 15 mm
Cable output Yes
Connector output -
Resolution 16 x 14 Bit max.
Output circuits NPN, Push-Pull, SSI
Operating temperature -20°C +40°C (-4°F +104°F)
Protection IP66



ASR58
Integrated cam switch programmer.
16 digital outputs, freely programmable.
Real time output.
Resolution 0,1°.
For packaging machinery, presses and index tables
Housing diameter 58 mm
Shaft diameter 6, 8, 9.52, 10, 12 mm
Cable output -
Connector output Yes
Resolution 3600/0,1°
Output circuits 16 x ON/OFF, 100 mA
Operating temperature -20°C +70°C (-4°F +158°F)
Protection IP65



AS58 A · AM58 A
Analogue output (optical potentiometer)
0-10V, 0-5V, 4-20 mA
Single & multi-turn versions
Special versions on request
Housing diameter 58 mm
Shaft diameter 6, 8, 9.52, 10, 12, 14, 15 mm
Cable output -
Connector output Yes
Resolution 16 bit max.
Output circuits 0-5V, 0-10V, 4-20mA
Operating temperature -20°C +70°C (-4°
AS58 ISI
Incremental serial interface (ISI).
Absolute position and incremental signal output.
Single & multi-turn version.
Shaft & hollow shaft.
Housing diameter 58 mm
Shaft diameter 6, 8, 9.52, 10, 12 mm
Cable output -
Connector output Yes
Resolution 2048 PPR
Output circuits ISI (Incremental serial interface)
Operating temperature -20°C +70°C (-4°F +158°F)
Protection IP65
AM58 ISI
Incremental serial interface (ISI).
Absolute position and incremental signal output.
Single & multi-turn version.
Shaft & hollow shaft.
Housing diameter 58 mm
Shaft diameter 6, 8, 9.52, 10, 12 mm
Cable output -
Connector output Yes
Resolution 2048 PPR x 4096 rev.
Output circuits ISI (Incremental serial interface)
Operating temperature -20°C +70°C (-4°F +158°F)
Protection IP65
AM5
See AS5.
Absolute multi-turn encoder.
Housing diameter 51 mm
Shaft diameter 6, 8, 10, 12 mm
Cable output Yes
Connector output -
Resolution 12 x 8 Bit max.
Output circuits NPN, Push-Pull
Operating temperature -20°C +70°C (-4°F +158°F)
Protection IP65

AM58 • AM58S • AMC58
Standard absolute multi-turn encoder.
Resolution up to 30 bit (65535 CPR x 16384 rev.)
Robust housing. Cable and connector output.
• AM58: servo flange
• AM58S: clamp style flange
Blind hollow shaft up to Ø15mm.
Different fixing possibilities:
• AMC58: standard version with movable antirot. pin (M3 screw)
• AMC59: flexible fixing plate "xx59 style"
• AMC60: compact fixing plate "xx60 style"
Housing diameter 58 mm
Shaft diameter 6, 8, 9.52, 10, 12, 14, 15 mm
Cable output Yes
Connector output Yes
Resolution 16 x 14 Bit max.
Output circuits NPN, Push-Pull, SSI
Operating temperature -40°C +100°C (-40°F +212°F) max.
Protection IP65



AM58 P
Programmable absolute multi-turn encoder.
Bit parallel or SSI output signals.
Protection IP65.
Cable and connector output.
Preferential encoder on Stock.
Housing diameter 58 mm
Shaft diameter 6, 8, 9.52, 10, 12, 14, 15 mm
Cable output Yes
Connector output Yes
Resolution 13 x 12 Bit max.
Output circuits NPN, Push-Pull, SSI
Operating temperature -20°C +70°C (-4°F +158°F)
Protection IP65


AM9 • AMC9
Compact & flat multi-turn encoder.
Resolution up to 8192 counts/rev. x 4096 rev.
Radial M23 connector output.
· AM9: solid shaft version
· AMC9: through hollow shaft version
Housing diameter 88 mm
Shaft diameter 10, 15 mm
Cable output -
Connector output Yes
Resolution 13 x 12 Bit max.
Output circuits SSI
Operating temperature -40°C +100°C (-40°F +212°F) max.
Protection IP65


SC1
Absolute multiturn encoder.
Digital indicator size and mounting.
RS485 interface, Bus capable.
Reset button.
Shaft diameter 20 mm
Cable output Yes
Connector output -
Resolution 500 CPR x 256 rev.
Operating temperature 0°C + 70°C
Protection against inversion of polarity



Rotamag

Encoders magnéticos

MI36 • MC36
Compact magnetic incremental encoder, Ø36mm.                                                     High resistance against shocks and humidity.
Resolution up to 2048 pulses/rev.
Axial cable output
· MI36: solid shaft version
· MC36: blind hollow shaft version
Housing diameter 36 mm
Shaft diameter 6 mm
Cable output Yes
Connector output -
Resolution 2048 PPR max.
Counting frequency 300 kHz max.
Output circuits NPN, Push-Pull, Line Driver
Operating temperature -20°C +85°C
(-4°F +185°F)
Protection IP67 max.
MI58 • MI58S
Magnetic sensing.
IP67 protection available.
High resistance against shocks and humidity.
Resolution up to 10000 pulses/rev.
Cable and connector output
· MI58: with servo flange
· MI58S: with clamp flange
Housing diameter 58 mm
Shaft diameter 6, 8, 9.52, 10, 12 mm
Cable output Yes
Connector output Yes
Resolution 10000 PPR max.
Counting frequency 300 kHz max.
Output circuits NPN, Push-Pull, Line Driver
Universal Circuit
Operating temperature -25°C +85°C (-13°F +158°F)
Protection IP67 max.
MC59 • MC60 • MC58
Magnetic sensing.
Through hollow shaft encoder, Ø15mm.
High resistance against shocks and humidity.
Resolution up to 10000 pulses/rev.
· MC58: standard version with movable antirot. pin (M3 screw)
· MC59: flexible fixing plate "xx59 style"
· MC60: compact fixing plate "xx60 style"
Housing diameter 58 mm
Shaft diameter 14, 15 mm
Cable output Yes
Connector output Yes
Resolution 10000 PPR max.
Counting frequency 300 kHz max.
Output circuits Push-Pull, Line Driver, Universal Circuit
Operating temperature -25°C +85°C (-13°F +185°F)
Protection IP67 max.
MS36 • MSC36
Magnetic sensing.
Absolute single-turn encoder.
Resolution 4096 counts/rev, SSI interface.
Axial cable output.
Protection up to IP67.
· MS36: solid shaft version
· MSC36: blind hollow shaft version, Ø 6mm
Housing diameter 36 mm
Shaft diameter 6 mm
Cable output Yes
Connector output -
Resolution 8192 counts/rev.
Counting frequency 300 kHz max.
Output circuits SSI
Operating temperature -20°C +85°C (-4°F +185°F)
Protection IP67 max.

MM36 • MMC36
Absolute multi-turn magnetic encoder.
Very compact and robust housing.
Outside diameter 36mm.
Resolution up to 4096 counts/rev and up to 32768 rev, SSI interface.
Zero setting and counting direction function.
Axial cable output.
· MM36: solid shaft version
· MMC36: blind hollow shaft version, Ø 6mm

Housing diameter 36 mm
Shaft diameter 6 mm
Cable output Yes
Connector output -
Resolution 12 x 13 Bit max.
Counting frequency 10 kHz max.
Output circuits SSI
Operating temperature -20°C +85°C
Protection IP67 max.

MM58 • MM58S • MMC58
Absolute magnetic encoder
Resolution up to 4096 CPR and 32768 rev.
Compact and robust design
High resistance against shocks and humidity
· MM58: with servo flange
· MM58S: with clamp flange
· Through hollow shaft up to Ø15mm
Different fixing possibilities
· MMC58: standard version with movable antirot. pin (M3 screw)
· MMC59: flexible fixing plate "xx59 style"
· MMC60: compact fixing plate "xx60 style"
Housing diameter 58 mm
Shaft diameter 6, 8, 9.52, 10, 12, 14, 15 mm
Cable output Yes
Connector output -
Resolution 12 x 15 Bit max.
Output circuits SSI
Operating temperature -20°C +85°C
(-4°F +185°F)
Protection IP67 max.



Lineplus

Encoders magnéticos incrementais

MT
Standard incremental magnetic tape.
3 different accuracy classes.
Excellent resistance to oil and chemicals.
Length up to 100 m in one piece.
Width 10 mm
Length 1, 2, 4, 10, 30, 50, 100 m
Accuracy class ± 10 μm max.
Operating temperature -40°C +120°C (-40°F +248°F)
Protection IP67



MTS
See MT.Reduced section 5 mm.
Length up to 30 m in one piece.
Width 5 mm
Length 1, 2, 4, 10, 30 m
Accuracy class ± 50 μm max.
Operating temperature -40°C +120°C (-40°F +248°F)
Protection IP67



MRI/31
Compact magnetic ring.
Aluminium hub up to Ø 19mm hollow shaft.
Compatible to SME2 and SME5 sensors.
High rotational speed.
Special versions on request.
Outside diameter 30.9 mm
Accuracy class ± 0,15°
Operating temperature -40°C +120°C max. (-40°F +248°F max.)
Protection IP67



MRI/48
Compact magnetic ring.
Aluminium hub with Ø 6mm hollow shaft.
Compatible to SME5 and SMK.
High rotational speed.
MRI/48B with hollow shaft Ø 35mm.
Special versions on request.
Outside diameter 48.7 mm
Accuracy class ± 0,15°
Operating temperature -40°C +120°C max. (-40°F +248°F max.)
Protection IP67





MRI/114
For Torque motors or indexed tables.
Hollow shaft Ø 100mm.
Very compact design.
Compatible to SME2 and SME5.
MRI/114Z: version with reference pole.
Outside diameter 114.5 mm
Accuracy class ± 0,15°
Operating temperature -40°C +120°C max. (-40°F +248°F max.)
Protection IP67





MRI/284
For Torque motors and big shafts.
Hollow shaft Ø 250mm.
Very compact design.
Compatible to SME1, SME2 and SME5.
Outside diameter 286,5 mm
Accuracy class ± 0,15°
Operating temperature -40°C +120°C max. (-40°F +248°F max.)
Protection IP67





SMx-R
Passive magnetic sensor.
For use with displays or external conversion electronic (EBOX).
Easy connection by MiniDIN jack.
Flexible installation with long holes.
Dimensions 25 x 15 x 8,5 mm
Cable output -
Connector output Yes
Resolution depending on EBOX or display
Travel speed 16 m/s max.
Operating temperature -25°C +85°C (-13°F +158°F)
Protection IP67





SMx-C
See SMx-R.
Cylindrical version, M10 thread.
Dimensions M10 x 30 mm
Cable output -
Connector output Yes
Resolution depending on EBOX or display
Travel speed 16 m/s max.
Operating temperature -25°C +85°C (-13°F +185°F)
Protection IP67





EBOX
Programmable interpolation box.
Compatible to SMx-R and SMx-R.
Variable resolution and output circuit.
Dimensions 90 x 20 x 55 mm
Cable output -
Connector output Yes
Resolution 10 μm max.
Output circuits Push-Pull, Line Driver
Operating temperature -25°C +85°C (-13°F +185°F)
Protection IP40





SMB
Compact sensor with inline external interpolator.
All over IP67 protection.
Resolution up to 5μm.
Dimensions 25 x 15 x 8,5 + 49 x 30 x 10 mm
Cable output Yes
Connector output -
Resolution 5 μm max.
Travel speed 16 m/s max.
Output circuits Push-Pull, Line Driver
Operating temperature -25°C +85°C (-13°F +185°F)
Protection IP67





SME5
Robust sensor for linear and rotary measurements.
Reference pole available.
Gap clearance up to 2.0 mm.
IP67 protection.
Speed proportional output signals.
Resolution up to 5μm.
Dimensions 40 x 25 x 10 mm
Cable output Yes
Connector output -
Resolution 5 μm max.
Travel speed 16 m/s max.
Output circuits Push-Pull, Line Driver
Operating temperature -25°C +85°C (-13°F +185°F)
Protection IP67





SME2
See SME5.
Resolution up to 2μm.
Gap clearance up to 1.0 mm
Dimensions 40 x 25 x 10 mm
Cable output Yes
Connector output -
Resolution 2 μm max.
Travel speed 16 m/s max.
Output circuits Push-Pull, Line Driver
Operating temperature -25°C +85°C (-13°F +185°F)
Protection IP67





SME1
For Linear motors and Torque motors.
Speed proportional output signals.
Resolution up to 0.5μm.
Reference pole available.
IP67 protection.
Dimensions 40 x 25 x 10 mm
Cable output Yes
Connector output -
Resolution 0,5 μm max.
Travel speed 16 m/s max.
Output circuits Push-Pull, Line Driver
Operating temperature -25°C +85°C (-13°F +185°F)
Protection IP67





SHD5-SHD2-SHD1
For Linear motors and Torque motors.
Automatic Gain and Offset regulation.
Speed proportional output signals.
Resolution up to 1μm.
Dimensions 40 x 25 x 10 mm
Cable output Yes
Connector output -
Resolution 1 μm max.
Travel speed 16 m/s max.
Output circuits Push-Pull, Line Driver
Operating temperature -25°C +85°C (-13°F +185°F)
Protection IP67





SMS
For Linear motors and Torque motors.
Sine-Cosine, 1Vpp real-time output.
Signal period 1000 μm.
Reference pole available.
Easy installation.
IP67 protection, unaffected by dust, debris or liquids.
Dimensions 40 x 25 x 10 mm
Cable output Yes
Connector output -
Resolution 1000 μm
Travel speed 16 m/s max.
Output circuits 1Vpp (sin/cos)
Operating temperature -25°C +85°C (-13°F +185°F)
Protection IP67





SMK
Robust magnetic sensor for linear applications.
Gap clearance up to 4.0 mm.
Resolution up to 0.01mm.
Special resolutions (inch, dpi,..) available.
Dimensions 40 x 25 x 10 mm
Cable output Yes
Connector output -
Resolution 0,01 mm max.
Travel speed 2,5 m/s max.
Output circuits Push-Pull, Line Driver
Operating temperature -25°C +85°C (-13°F +185°F)
Protection IP67





SML • SMH
Robust sensor for linear and rotary applications.
Gap clearance up to 2.0 mm.
Resolution up to 0.1mm.
High travel speed.
Dimensions 40 x 25 x 10 mm
Cable output Yes
Connector output -
Resolution 0,1 mm max.
Travel speed 10 m/s max.
Output circuits Push-Pull, Line Driver
Operating temperature -25°C +85°C (-13°F +185°F)
Protection IP67





SMX2 • SMX5
Heavy duty magnetic sensor.
Quadrature output, AB signals.
Universal output circuit (Push Pull+Line Driver).
Steel case, M10 thread.
Gap clearance up to 3.0 mm.
Dimensions M10 x 30 mm
Cable output Yes
Connector output -
Resolution 2 mm max.
Travel speed 10 m/s max.
Output circuits UC (Universal circuit)
Operating temperature -10°C +70°C (-14°F +158°F)
Protection IP67





LD120
Compact LED display for magnetic sensors.
RS485 interface.
Panel mount version.
Easy sensor connection with MiniDIN plug.
Mm/inch display.
Display LED 5 digit
Display mode Linear, angular, mm/inch
Dimensions 72 x 36 x 62 mm
Input Magnetic sensor
Travel speed 10 m/s max.
Power supply +10Vdc +30Vdc
Interface RS485
Outputs -





LD130
Compact 3 axis LED display for magnetic sensors.
Actual/Target position difference display.
Low power mode for quasi-absolute operation.
RS485 bus interface.
Easy sensor connection with MiniDIN plug.
Display 3 x LED 5 digit
Display mode Linear, mm/inch
Dimensions 97 x 73 x 83
Input Magnetic sensor
Travel speed 5 m/s max.
Power supply +10Vdc +30Vdc
Interface RS485, RS232
Outputs -





LD140
Battery powered LCD display.
Quasi-absolute.
Plugged sensor.
Mm/inch display.
Angular display mode.
Resolution up to 0.001mm.
Display LCD 7 digit
Display mode Linear, angular, mm/inch
Dimensions 96 x 72 x 47 mm
Input Magnetic sensor
Travel speed 5 m/s max.
Power supply Battery
Interface RS232
Outputs -





LD142
See LD140.
Connected sensor.
Display LCD 7 digit
Display mode Linear, angular, mm/inch
Dimensions 96 x 72 x 47 mm
Input Magnetic sensor
Travel speed 5 m/s max.
Power supply Battery
Interface RS232
Outputs -





LD141
Quasi-absolute battery powered display.
OEM version without housing.
Connected sensor.
RS232 interface.
Display LCD 6 digit
Display mode Linear, angular, mm/inch
Dimensions 87 x 60.5 x 47 mm
Input Magnetic sensor
Travel speed 5 m/s max.
Power supply Battery
Interface RS232
Outputs -





LD111
See LD141.
Compact version.
Resolution up to 0.01mm.
Display LCD 6 digit
Display mode Linear, angular, mm/inch
Dimensions 61 x 39 x 23 mm
Input Magnetic sensor
Travel speed 5 m/s max.
Power supply Battery
Interface -
Outputs -





LD112
Battery powered LCD display.
Quasi-absolute.
Compact design.
Connected sensor.
Mm/inch display, Angular display mode.
Resolution up to 0.01mm.
Display LCD 6 digit
Display mode Linear, angular, mm/inch
Dimensions 72 x 48 x 31 mm
Input Magnetic sensor
Travel speed 5 m/s max.
Power supply Battery
Interface -
Outputs -







Linecod

Encoder magnéticos absolutos



SMAL
Absolute magnetic sensor for elevators.
SSI, RS485, Profibus, CANopen and CANlift interface available.
Measuring length up to 100 m.
Unaffected by dust, debris and liquids.
Dimensions 190 x 52 x 45 mm
Cable output Yes
Connector output Yes
Resolution 1 mm
Travel speed 5 m/s max.
Output circuits SSI, Profibus, CANopen, CANlift, RS485
Operating temperature -25°C +85°C (-13°F +185°F)
Protection IP54







SMAL2
Absolute magnetic sensor for elevators.
SSI, RS485, Profibus, CANopen and CANlift interface available.
Unaffected by dust, debris and liquids.
Dimensions 147 x 100 x 60 mm
Cable output No
Connector output Yes
Resolution 0,1 mm
Travel speed 5 m/s max.
Output circuits Push-Pull, Line Driver, SSI, RS485, CANopen, CANlift
Operating temperature -25°C +85°C (-13°F +185°F)
Protection IP54



MTA5 • MTA1
Absolute coded magnetic tape with adhesive tape.
Excellent resistance to oil and chemicals.
Length up to 5.1 m in one piece.
· MTA1: Compatible to SMA1 sensors
· MTA5: Compatible to SMA5 sensors
Width 20 mm
Length 5,1 m max.
Accuracy class ± 50 μm max.
Operating temperature -40°C +120°C (-40°F +248°F)
Protection IP67



SMA5
Compact absolute magnetic sensor.
Integrated SSI interface.
Resolution up to 5μm.
Unaffected by dust, debris and liquids.
Dimensions 65 x 20 x 20 mm
Cable output Yes
Connector output -
Resolution 5 μm max.
Travel speed 5 m/s max.
Output circuits SSI
Operating temperature -25°C +85°C (-13°F +185°F)
Protection IP67





SMA1
Compact absolute magnetic sensor.
For Feedback applications on linear motors.
Integrated BiSS interface.
Sine-Cosine, 1Vpp signal with 1000μm period.
Programmable resolution up to 5μm.
Unaffected by dust, debris and liquids.
Dimensions 85 x 21 x 20
Cable output Yes
Connector output -
Resolution 5 μm max.
Travel speed 5 m/s max.
Output circuits BiSS + sin/cos
Operating temperature -25°C +85°C (-13°F +185°F)
Protection IP67







Drivecod

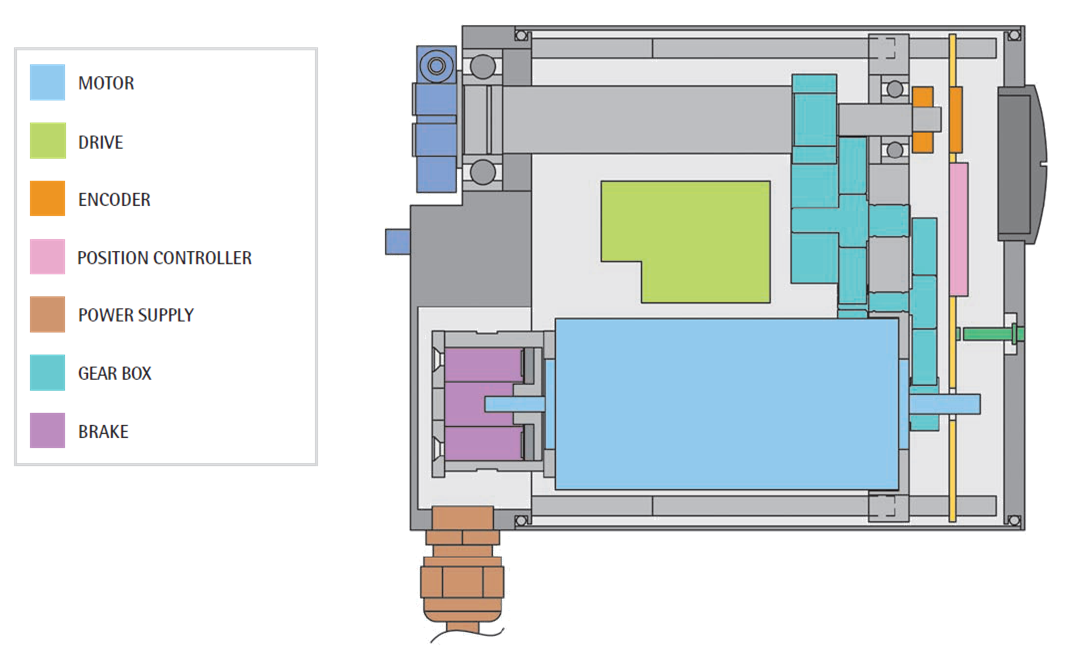

O que é uma unidade de posicionamento drivecod ?

É um motor com caracteristicas de controle e potência incorporado no proprio produto, garantindo alto nivel de precisão e economia devido a simplicidade na aplicação



Posicionamento de eixos secundários de forma rápida e eficiente
Ajustes multiplos ao mesmo tempo
Aumento de precisão e repetibilidade
Controle simples e centralizado
Aumento da produtividade
Aumento da flexibilidade

Aplicações:

Lista de modelos disponiveis:

RD1
Positioning unit for secondary axes.
Integrates Gear-motor, Drive, Encoder, Position controller & fieldbus interface.
For conveyor and spindle positioning on packaging & woodworking machinery.
Starting torque up to 10Nm, constant torque up to 5Nm.
Rotational speed up to 240 rpm.
Blind hollow shaft Ø 14mm.
Easy fixing with antirotaion pin.
Jog+/Jog- push buttons on back side.
Dimensions 58 x 124 x 122 mm
Shaft diameter 14 mm
Speed 240 rpm max.
Torque 5 Nm max.
Power supply 24 Vdc
Interface RS485, Profibus-DP, CANopen
Encoder Absolute
RD11
See RD1.
Solid shaft with keyway.
Fixing with 4 screws.
Dimensions 58 x 124 x 122 mm
Shaft diameter 15 mm
Speed 240 rpm max.
Torque 5 Nm max.
Power supply 24 Vdc
Interface RS485, Profibus-DP, CANopen
Encoder Absolute
RD12
See RD1.
Integrated motor brake.
Dimensions 58 x 124 x 150 mm
Shaft diameter 14 mm
Speed 240 rpm max.
Torque 5 Nm max.
Power supply 24 Vdc
Interface RS485, Profibus-DP, CANopen
Encoder Absolute
RD2
Compact positioning unit for secondary axes.
Integrates Gear-motor, Drive, Encoder, Position controller & fieldbus interface.
For conveyor and spindle positioning on packaging & woodworking machinery.
Starting torque up to 3Nm, constant torque up to 1.6Nm
Rotational speed up to 110 rpm.
Blind hollow shaft Ø 14mm.
Easy fixing with antirotation pin.
Dimensions 56 x 56 x 125 mm
Shaft diameter 14 mm
Speed 110 rpm max.
Torque 1.6 Nm max.
Power supply 24 Vdc
Interface RS485, Profibus-DP, CANopen
Encoder Assoluto
RD22
See RD2.
Integrated motor brake.
Dimensions 56 x 56 x 154 mm
Shaft diameter 14 mm
Speed 110 rpm max.
Torque 1.6 Nm max.
Power supply 24 Vdc
Interface RS485, Profibus-DP, CANopen
Encoder Absolute
RD3
Compact positioning unit for secondary axes.
Integrates Gear-motor, Drive, Encoder, Position controller & fieldbus interface.
For conveyor and spindle positioning on packaging & woodworking machinery.
Starting torque up to 10Nm, constant torque up to 5Nm.
Rotational speed up to 240 rpm.
Blind hollow shaft Ø 14mm.
Easy fixing with antirotaion pin.







Design by Duplo D
Desenvolvimento by Codemix

Valid HTML 4.01 Strict

Fone: 55 41 3015.7953 | Fax: 55 41 3015.7853
Copyright 2011 . Todos os direitos reservados
