PCs Industriais

IHM painel

Human Machine Interfaces are the interfaces between operator/ human and machines. The operators give commands through these interfaces to PLC, inverters or temperature controllers to control machines and process. These are more modern devices than conventional physical switches, knobs & buttons, and have been widely used for better factory automation in industries of packaging, assl handling, electrical & electronics manufacturing, metalworking, textile manufacturing, plastics, robotics, food & beverage, chemical & petrochemical, oil & gas, pulp & paper, water & wastewater, automotive, pharmaceutical, electronic power, etc.

Human Machine Interface features :

* Many PLCs supported
* Friendly multiple languages supported to the end users
* Temperature controllers & inverters directly connected to HMI via Modbus
* Data logging, bargraphs, trends and alarms
* Animation: display/hide, flash, color changed
* Data entry and data displayfrom/to PLC registers directly
* Free configuration software, configuration for all HMIs from PC software
* Upto 65535 screens in each project, pop-up screen and associated screen supported
* Ladder programming (Soft PLC) supported in HMI and Ladder online monitoring
* Screen security
* Floating point suppored
* Ready made registers for Real Time Clock
* Unique Tag database for HMI and PLC registers
* 256 real time alarms, and 30 or 2000 historical alarms
* Global tasks, power-on tasks, list of predefined tasks and screen tasks-before, while and after
* Ready made objects for lamps, botton , data entry, data display, trend, alarm, bitmaps, meters
* Action for graphical objects from list of predefined tasks
* Ready-made system coils for changing RTC data by sec., min., hour, day, month, year

IHM móvel

Para uso em aplicações móveis onde o usuario precisa programar e obter dados na palma da mão

The ultra-compact solution with maximum performance
75 x 42 mm OLED display
480 x 272 pixels
36 freely programmable membrane keys
RS-422-A / RS-232-C interface / Ethernet
OMAP3503 processor
(ARM Cortex A8)

 The compact solution, focused on operating
30 x 60 mm LC display
128 x 64 pixels
32 freely programmable membrane keys
RS-422-A interface
KeTop T40

 for simple visualization tasks
3.8" QVGA display
Grayscale display
Windows CE™
Ethernet
RS 232-C / RS 422-A

 The mid-range solution focused on touch operation
6.5" TFT VGA display
65,536 colors
Windows CE™
Ethernet
RS 232-C / RS 422-A

The high-end solution for visualization tasks
8.4" TFT SVGA display
65,536 colors
Windows CE™
Ethernet
RS-422-A / RS-232-C (Debug)

 Accessories for the KeTop series
Cable
Connection boxes
Wall mounts
Other accessories

IHM com PC

A ultima palavra em interface homem maquina baseada em PC Dual Core

A CHOICEapresenta a nova geração de IMH PC Touch Panel equipada com processadores de ultima geração Intel® ATOM, perfeito para aplicações na industria, hospitais.

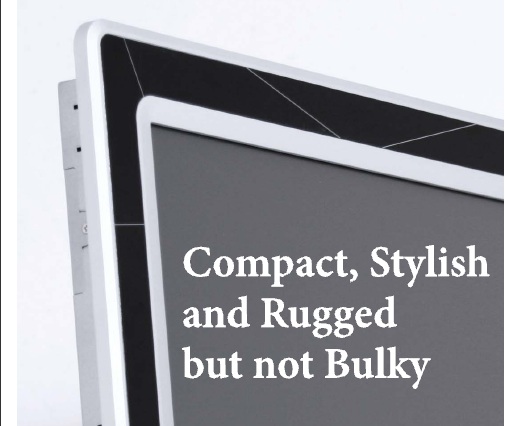

The CPU equipped on the X-PPC 850 is the powerful next generation dual core processor from Intel - ATOM Dual Core CPU(the first industrial touch Panel PC with such high-level CPU on the market), making X-PPC 850 capable to handle heavier and higher loading resulting from modern day software with complex functions easily and deliver faster transaction.

No more noise from the thermal fan of the Panel PC!  Adopts advanced fanless thermal solutions on X-PPC 850, resulting lower power consumption and no noise under idle model or full-load mode.

As consequence you can see, no conventional motor thermal fan means lower maintenance requirements, higher Reliability and Availability, saving energy, saving money and saving our earth.

BOX PC

Em construção.
